B07 主軸箱移動型數控車床
Release time:2023/3/23     Hits:728
Product model:B07
  • 10
  • 9
  • 7
Detailed introduction

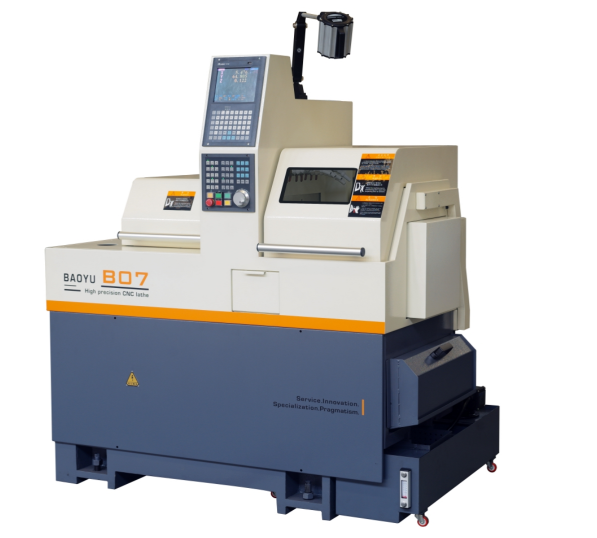

The B07 CNC lathe by BYSK CNC is a cutting-edge six-axis sliding headstock lathe designed specifically for the precision machining of ultra-small diameter components, such as watch parts, probes, and connector plugs.

Inheriting the principles of precision design, this machine achieves high-precision machining.

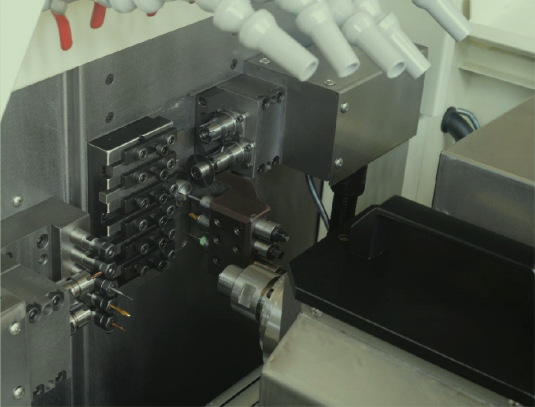

An extensive range of configurations is available, including end-face drilling, boring, and lateral power head combinations.

Reduce idle time.

The rear tool post features a Y-axis, allowing for complex processing and simultaneous machining on both the back and main spindle sides.

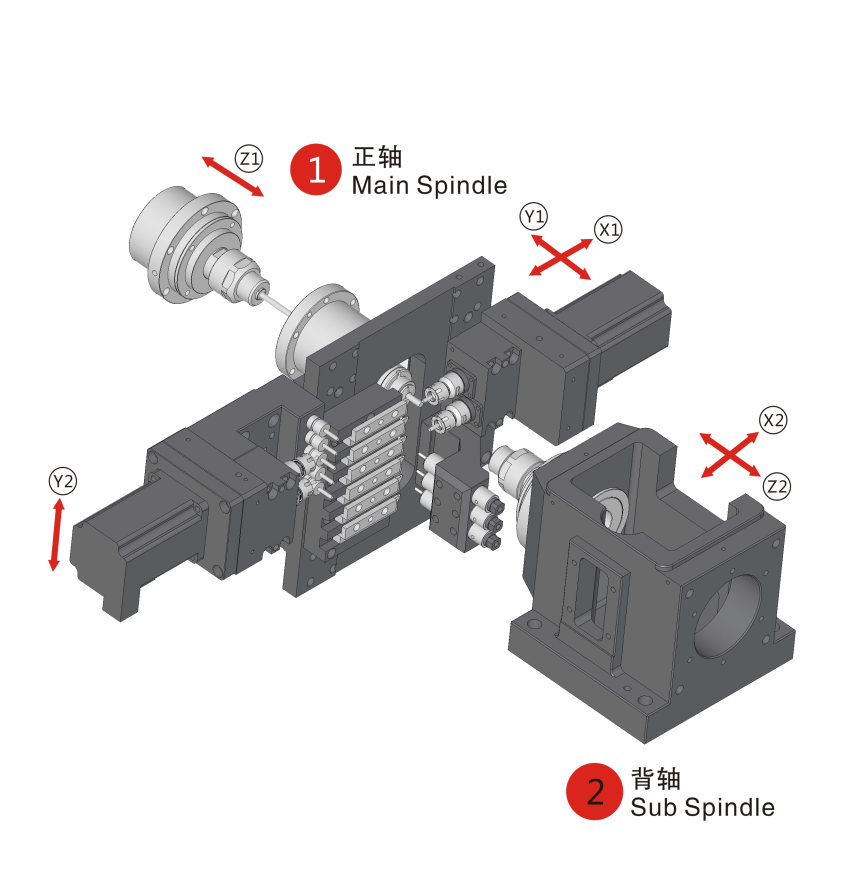

The main spindle section includes 6 square tools, 2 side power heads with vertical and horizontal movement capabilities, and 3 end face drilling tools.

The rear spindle section comes with 5 end face tools and 2 side power heads with vertical movement capabilities.

Performance parameter

B07機床參數

電源

電源額定電壓

三相交流380V

行程

X2軸行程

340mm(直徑量)



電源額定頻率

50HZ

Y2軸行程

60mm



總輸入功率

7kW

Z2軸行程

100mm

數控系統

寶宇

190

X2軸伺服馬達功率

0.4kW

最小設定單位

0.001mm

Y2軸伺服馬達功率

0.4kW

X軸脈沖當量

0.0005mm

Z2軸伺服馬達功率

0.4kW

Y軸脈沖當量

0.001mm

滑軌形式

直線導軌

Z軸脈沖當量

0.001mm

主軸刀具

8*8方刀

6把

切削速度

1-4000mm/min

6104夾頭

3把

X軸快速進給速度

18000mm/min

主軸側面動力頭

ER11

2把

Y軸快速進給速度

18000mm/min

轉速

0-6000r/min

Z軸快速進給速度

18000mm/min

功率

0.4kW

主軸

最大棒料直徑

Φ7mm

副軸刀具

ER8M-C12-L60延長桿

5把

主軸通孔直徑

Φ9mm

副軸側面動力頭

ER11

2把

主軸中心離地面高度

940mm

轉速

0-6000r/min

主軸轉速

0-7000r/min

功率

0.4kW

主軸馬達功率

1.5kW

冷卻系統

切削油用電機功率

0.45kW

副軸

最大夾緊直徑

Φ7mm

冷卻箱容量

75L

副軸轉速

0-7000r/min

潤滑系統

馬達功率

25W

副軸馬達功率

1.5kW

容量

1.5L

行程

X1軸行程

40mm(直徑量)

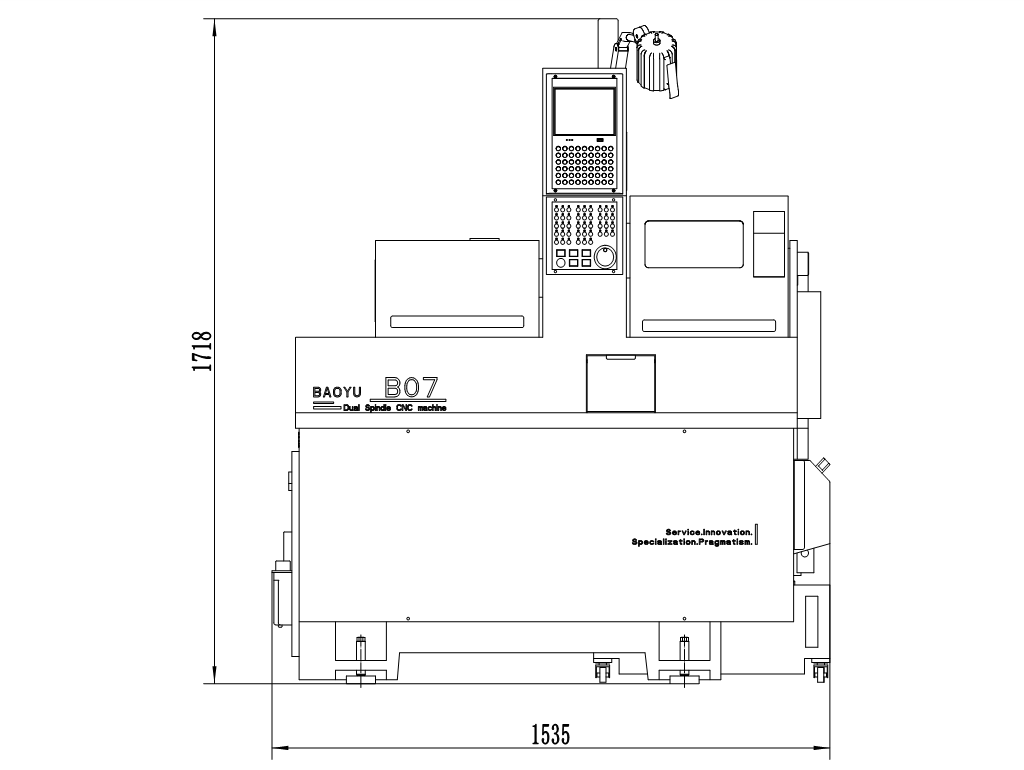

機床尺寸

長*寬*高

1540*1000*1700

Y1軸行程

100mm



機床重量

1200kg

Z1軸行程

180mm







X1軸伺服馬達功率

0.4kW







Y1軸伺服馬達功率

0.4kW







Z1軸伺服馬達功率

0.4kW







Product configuration

機床配置

名稱

型號/規格

廠家

系統

YZ190

自制

主軸

國產

自制

主軸電機

1.5kW絕對值伺服電機

禾川+總線

副軸電機

1.5kW絕對值伺服電機

禾川+總線

X1軸電機

0.4kW絕對值伺服電機

禾川+總線

Y1軸電機

0.4kW絕對值伺服電機

禾川+總線

Z1軸電機

0.4kW絕對值伺服電機

禾川+總線

X2軸電機

0.4kW絕對值伺服電機

禾川+總線

Y2軸電機

0.4kW絕對值伺服電機

禾川+總線

Z2軸電機

0.4kW絕對值伺服電機

禾川+總線

導軌



上銀/銀泰

絲桿



臺灣合資

Sample display
